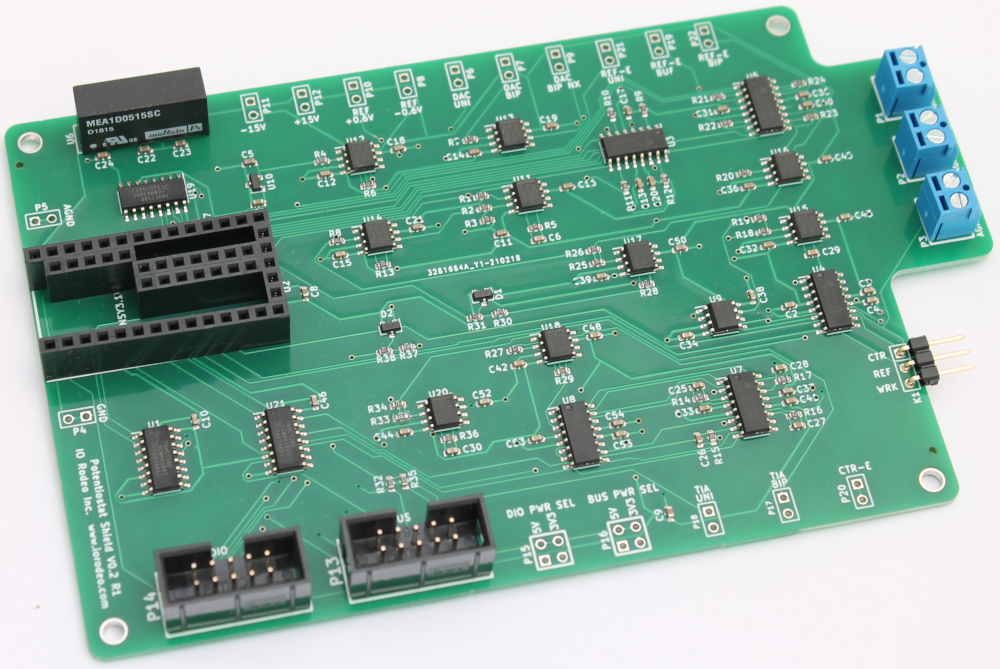

Rodeostat PCB Design Files & BOM

Contribute to iorodeo/potentiostat development by creating an account on GitHub.

Sheet1 JLCPCBItem #,Comment,Designator,Footprint,LCSC Part #（optional）,Qty1,4.7uF ceramic capacitor,C1,C5,603,C19666 ,22,0.1uF ceramic capacitor,C2,C3,C4,C10,C11,C12,C13,C14,C15,C16,C17,C18,C19,C20,C21,C24,C31,C32,C33,C34,C35,C36,C37,C38,C39,C40,C41,C42,C43,C44,C45,C46,C47,C48,C50,C52,C53,C5...

Sheet1 Item #,Qty,Reference,Description,Digikey PN1,3,C1, C5, C30, C37, C39,10nF capacitor ,311-1136-1-ND2,4,C19, C20, C21, C22,56nF capacitor ,478-1392-1-ND3,17,C2, C6, C10 - 15, C17, C23 - 25, C27 - 28, C33 - 35,0.1uF capacitor,311-1361-1-ND4,1,C9,1.0uF capacitor,1276-1066-1-ND5,4,C3, C7,...
